SF Series Low Noise Axial Duct Fan

This product has a forward three-piece wrenched wide impeller with low noise, large air volume, high efficiency and stable pressure. We have adopted advanced streamlined process to conduct the spray coating, so the shell and impeller have a ever-lasting color, soft and light. This product is suitable for the ventilation of industrial and mining enterprise, civil building and roof ventilation.
Air volume is 1600 - 30000 m3/h and
Total Pressure 65 - 345 Pa.

TYPE	Wheel Diameter		VOLT (Phase)	POWER (Watt)	SPEED (RPM)	CAPACITY (m3/hour)	St. Press (Pa)	Noise dB(A)	Weight (kg)
	(inch)	(mm)
DF 3 G 4	12"	300	220	180	1400	1600	65	65	11
SF 3 G 4			380
DF 3,5 G 4	14"	350	220	370		3700	130	67	15
SF 3,5 G 4			380
DF 4 G 4	16"	400	220	550		5300	166	72	22
SF 4 G 4			380
SF 5 G 4	20"	500		750		9300	196	74	28
SF 6 G 4	24"	600		2200		18700	294	75	61
SF 7 G 4	28"	700		3000		24500	315	78	78
SF 8 G 4	32"	800		4000		30000	345	81	100

SF Series Low Noise Axial Wall Fan

This Product has a special design space wrenched impeller with low noise, large air volume, good performance, easy maintanance and repair. It is widely used in warehouse, workplaces, and public places of entertainment.
Air volume 2200 - 8500 m3/h and pressure 68 - 130 Pa

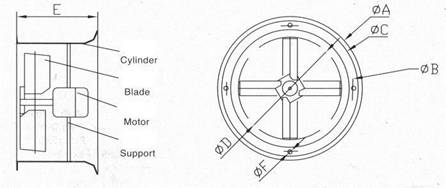

TYPE	Wheel Diameter		VOLT (Phase)	POWER (Watt)	SPEED (RPM)	CAPACITY (m3/hour)	St. Press (Pa)	A	B	C	D	E	F
	(inch)	(mm)
DF 3 B 4	12"	300	220	180	1400	2200	68	360	334	360	300	272	6
SF 3 B 4			380
DF 3,5 B 4	14"	350	220	210		2800	90	420	383	408	350	272	6
SF 3,5 B 4			380
DF 4 B 4	16"	400	220	250		4500	108	470	437	460	400	272	6
SF 4 B 4			380
DF 5 B 4	20"	500	220	370		5800	118	580	536	570	500	272	6
SF 5 B 4			380
DF 6 B 4	24"	600	220	550		8500	130	670	643	660	600	292	6
SF 6 B 4			380									272
